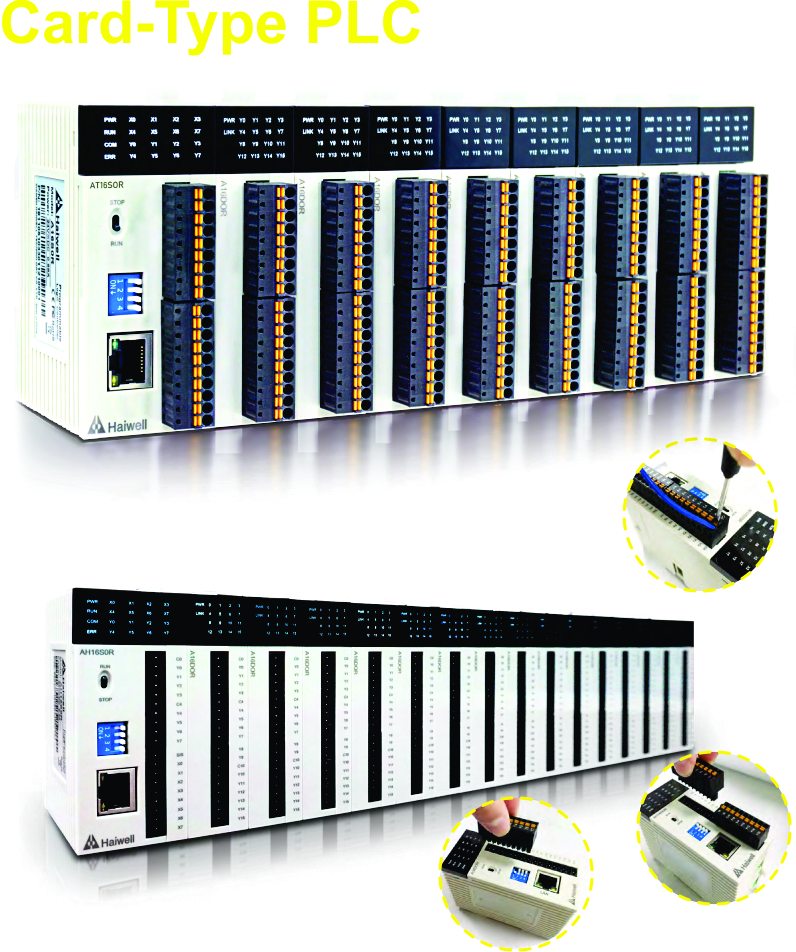

Haiwell A Series Card-type PLC Features

* HaiwellHappy programming software

* Ultra-thin design, humanized peripheral port design, saving installation space

* Single Machine integrated digital & analog IO, small size, large application

* Support Haiwell Cloud, remotely program and monitor the PLC through Haiwell Cloud

* Single machine can expand up to 15 modules, maximum expansion I/O up to 256 points

* Support Ethernet + RS485 + 3 RS232/RS485 communication ports to work at the same time, strong communication networking capabilities

* Supports 2 channels A/B phase (4 points) 200 kHz high-speed pulse input and output

* Support linear interpolation, ARC interpolation, original point return, backlash compensation, electric original point redefine

AC Series - Economic PLC MPU

Model	Specification						Price Rp.
24VDC	DI	DO	AI	AO	Com	Exp.
AC10S0R	6	4 Relay			TCP+Rs485	3	2.273.500
AC10S0T	6	4 Transistor NPN			TCP+Rs485	3	2.273.500
AC10S0P	6	4 Transistor PNP			TCP+Rs485	3	2.273.500
AC16S0R	8	8 Relay			TCP+Rs485	3	2.869.500
AC16S0T	8	8 Transistor NPN			TCP+Rs485	3	2.869.500
AC16S0P	8	8 Transistor PNP			TCP+Rs485	3	2.869.500
AC12M0R	4	4 Relay	2	2	TCP+Rs485	3	3.862.500
AC12M0T	4	4 Transistor NPN	2	2	TCP+Rs485	3	3.862.500
AC12M0P	4	4 Transistor PNP	2	2	TCP+Rs485	3	3.862.500

*The Signal Type is AI, AO supports types: [4,20]mA, [1,5]V, [0,20]mA, [0,5]V, [0,10]V,; Can Setting by Software

AT Series - Standard PLC MPU

Model	Specification								Price Rp.
24VDC	DI	DO	AI	AO	Pulse Input	Pulse Output	Com	Exp.
AT16S0R	8	8 Relay			2 Channels A/B phase (4 points 200Khz)		TCP+Rs485	15	3.136.500
AT16S0T	8	8 Transistor NPN			2 Channels A/B phase (4 points 200Khz)	2 Channels A/B phase (4 points 200Khz)	TCP+Rs485	15	3.136.500
AT16S0P	8	8 Transistor PNP			2 Channels A/B phase (4 points 200Khz)	2 Channels A/B phase (4 points 200Khz)	TCP+Rs485	15	3.136.500
AT12M0R	4	4 Relay	2	2	1 Channels A/B phase (2 points 200Khz)		TCP+Rs485	15	4.528.500
AT12M0T	4	4 Transistor NPN	2	2	1 Channels A/B phase (2 points 200Khz)	1 Channels A/B phase (2 points 200Khz)	TCP+Rs485	15	4.528.500
AT12M0P	4	4 Transistor PNP	2	2	1 Channels A/B phase (2 points 200Khz)	1 Channels A/B phase (2 points 200Khz)	TCP+Rs485	15	4.528.500

*The Signal Type is AI, AO supports types: [4,20]mA, [1,5]V, [0,20]mA, [0,5]V, [0,10]V,; Can Setting by Software

AH Series - High Performance PLC MPU

Model	Specification						Price Rp.
24VDC	DI	DO	Pulse Input	Pulse Output	Com	Exp.
AH16S0R	8	8 Relay	4 Channels A/B phase (8 points 200Khz)		TCP+Rs485	15	4.654.000
AH16S0T	8	8 Transistor NPN	4 Channels A/B phase (8 points 200Khz)	4 Channels A/B phase (8 points 200Khz)	TCP+Rs485	15	4.654.000
AH16S0P	8	8 Transistor PNP	4 Channels A/B phase (8 points 200Khz)	4 Channels A/B phase (8 points 200Khz)	TCP+Rs485	15	4.654.000
